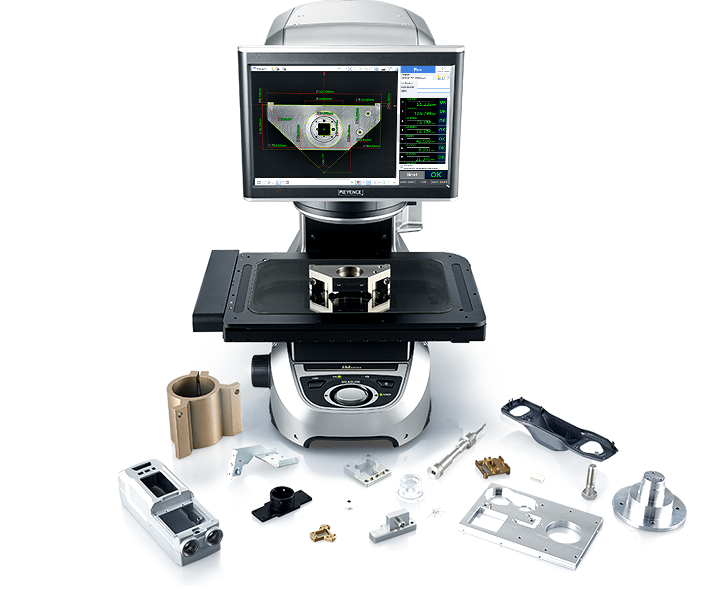

NEW Image Dimension Measurement System IM-8000 Series

For detailed measurement with higher accuracy, Click here.

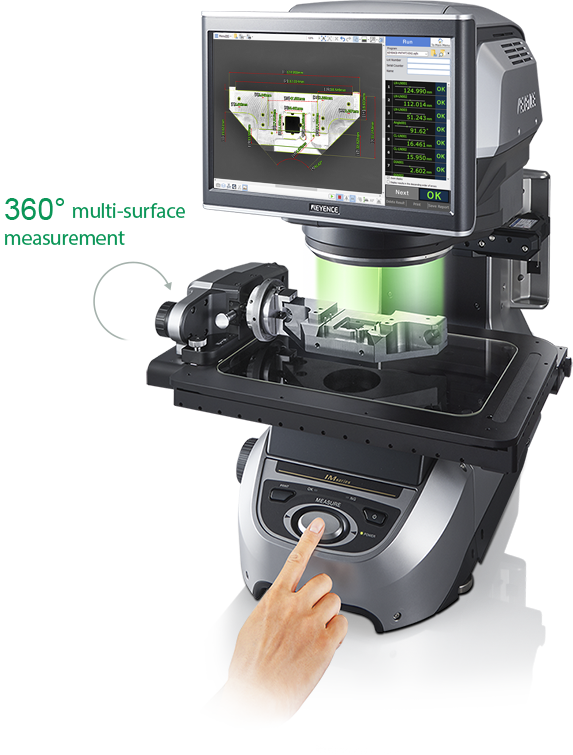

360° multi-surface measurement

Automatic Measurement on up to 300 Part Features in Seconds

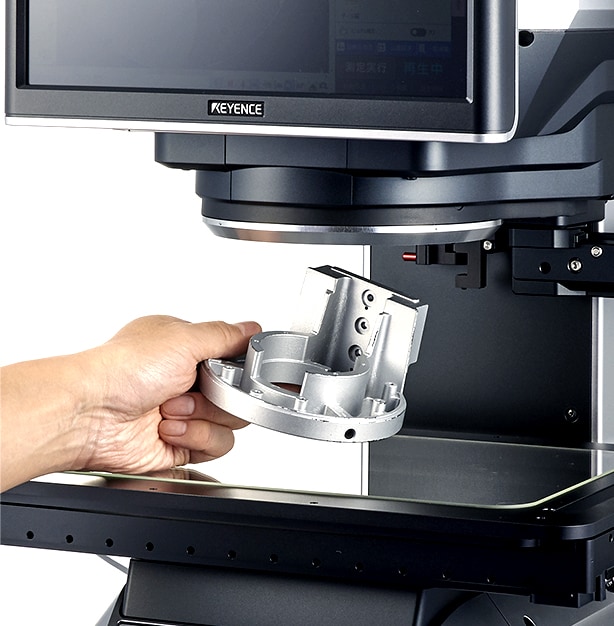

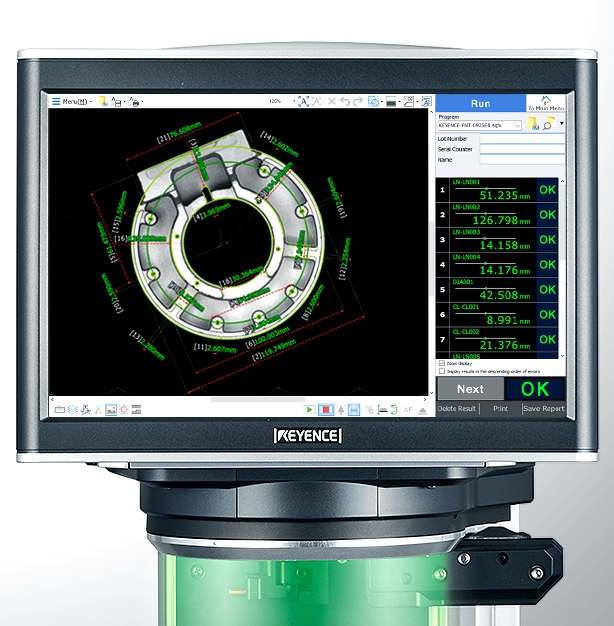

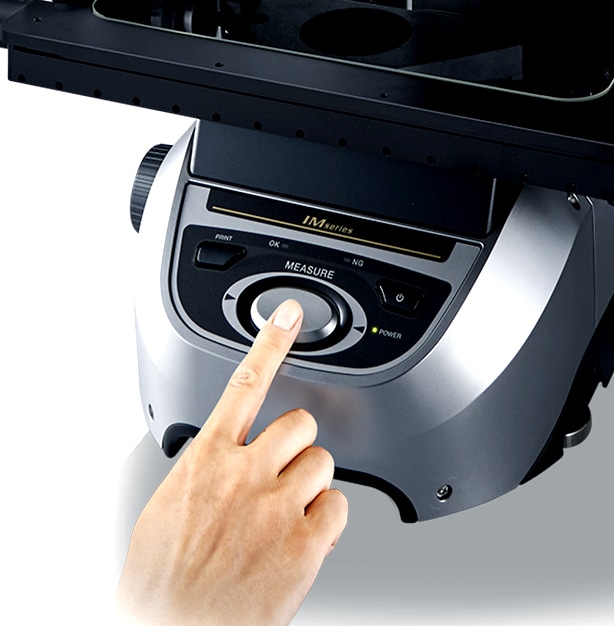

Anyone can measure a part by simply placing it on the stage and pressing one button.
Regardless of operator skill, the unit provides accurate and repeatable measurements instantly.


Measure Small, Large, and Three-dimensional Parts

Perform a complete set of measurements with just one touch of a button.

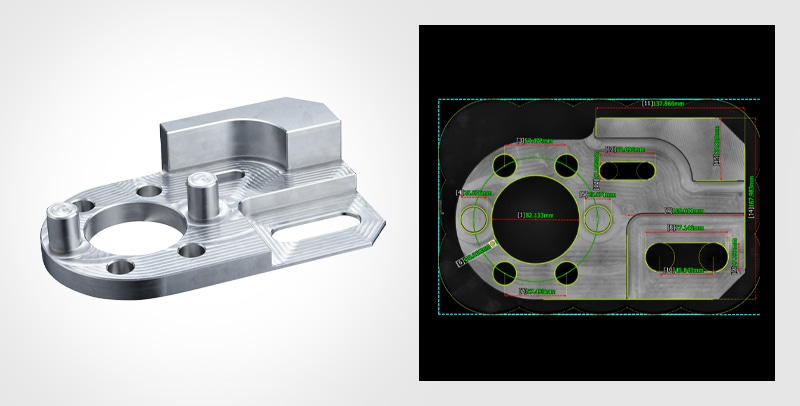

Machined part

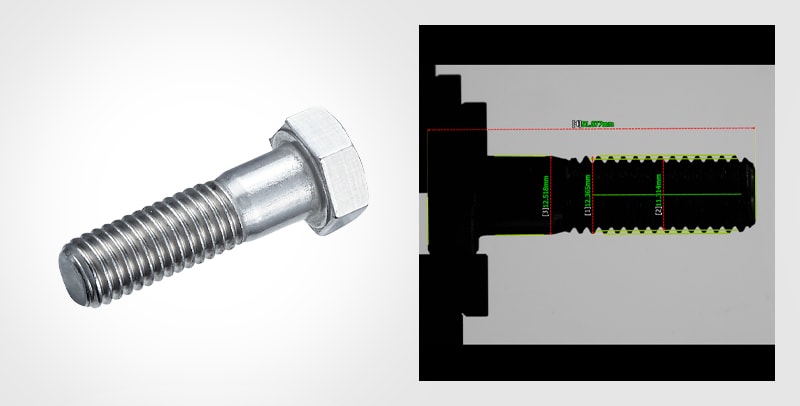

Screw and bolt

Pressed part

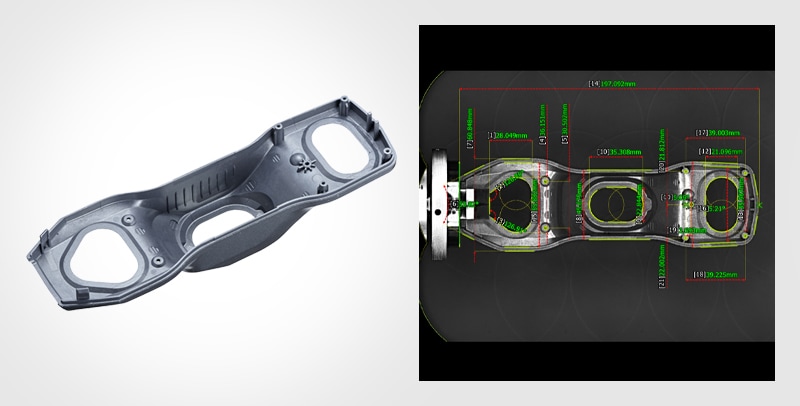

Injection moulded part

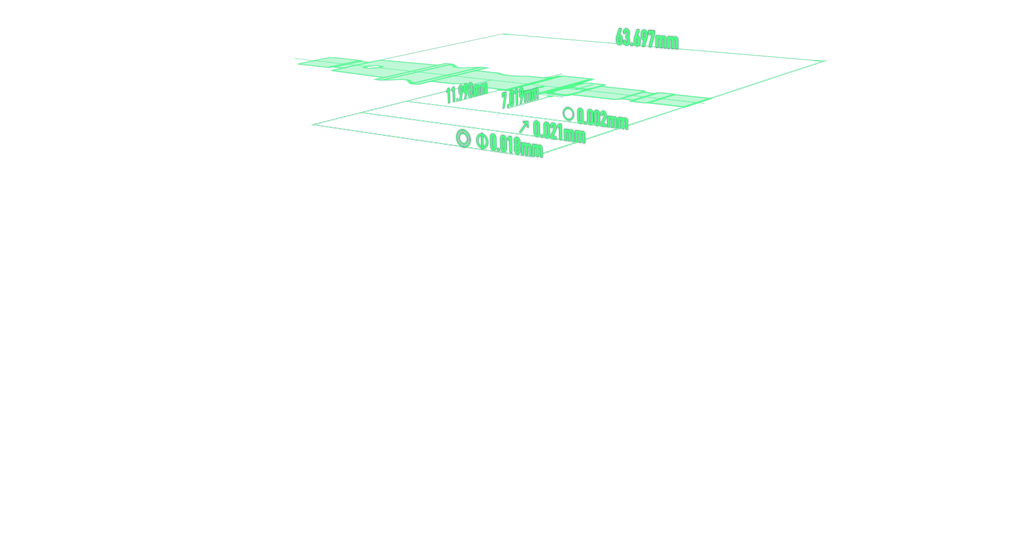

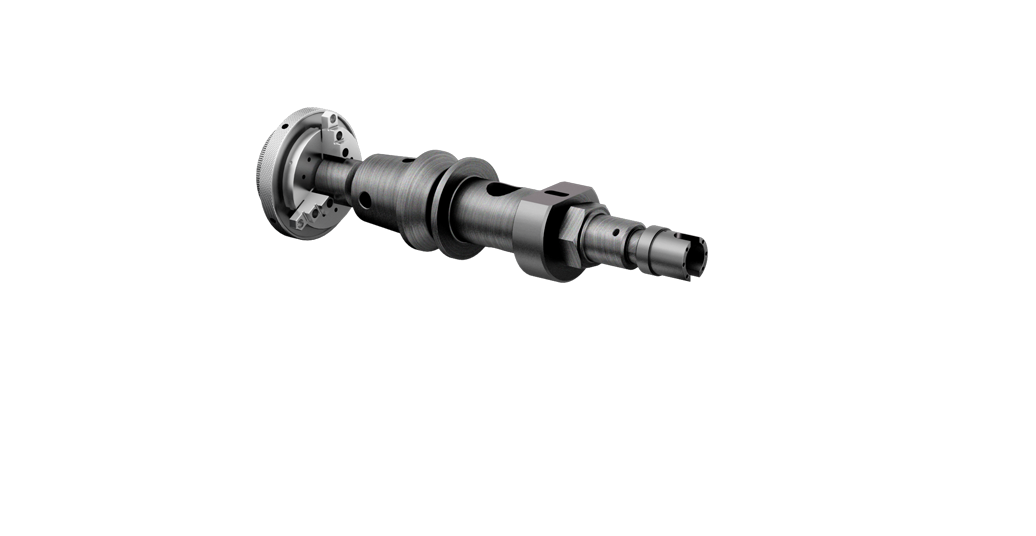

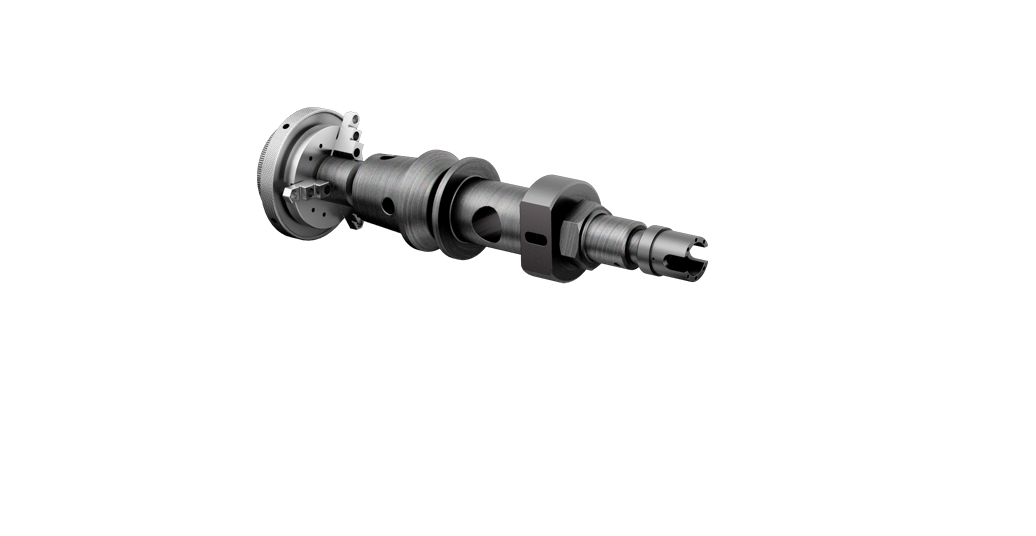

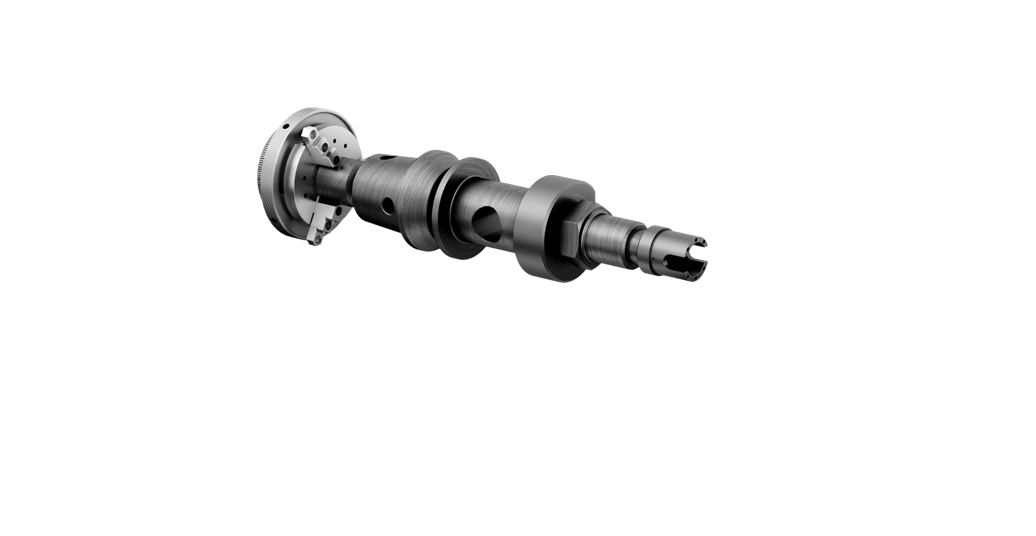

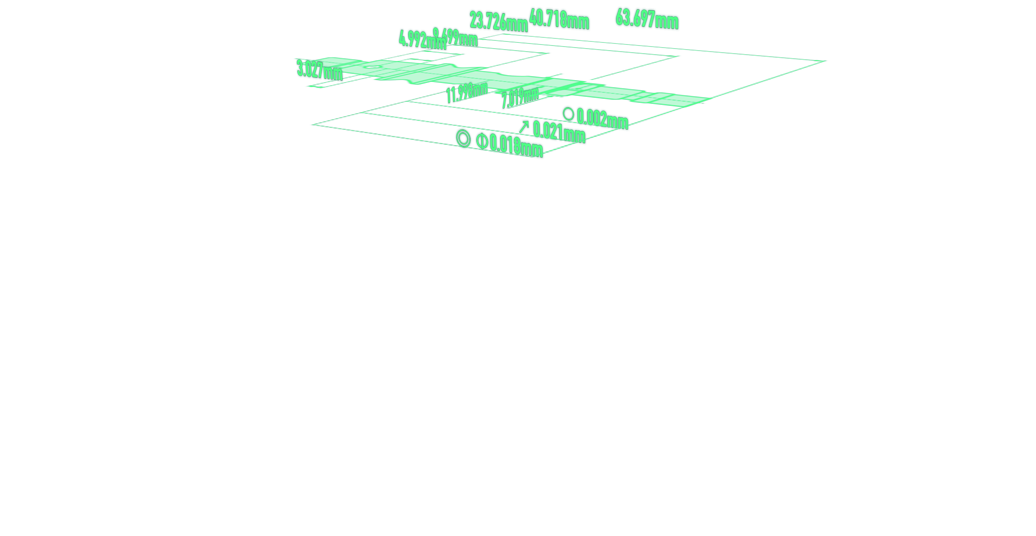

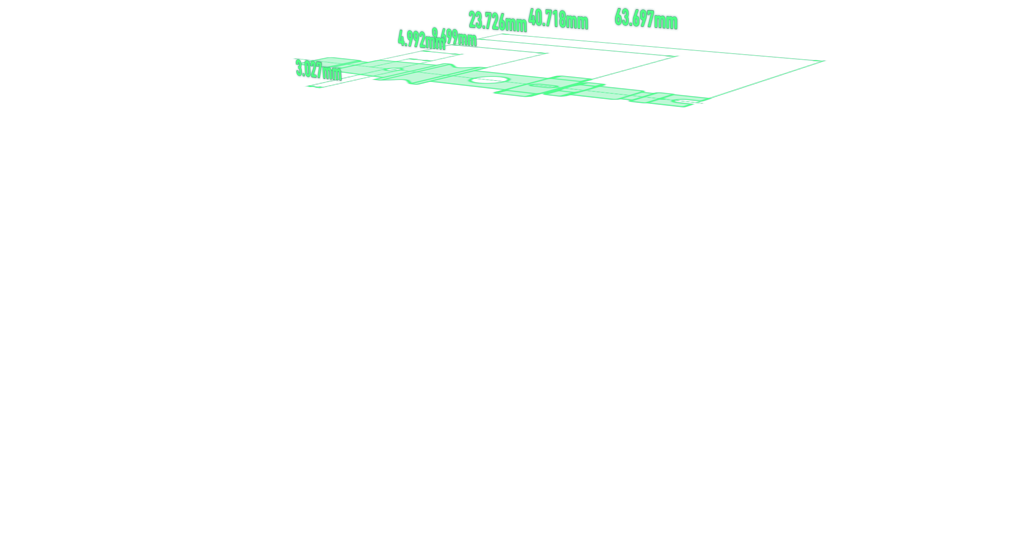

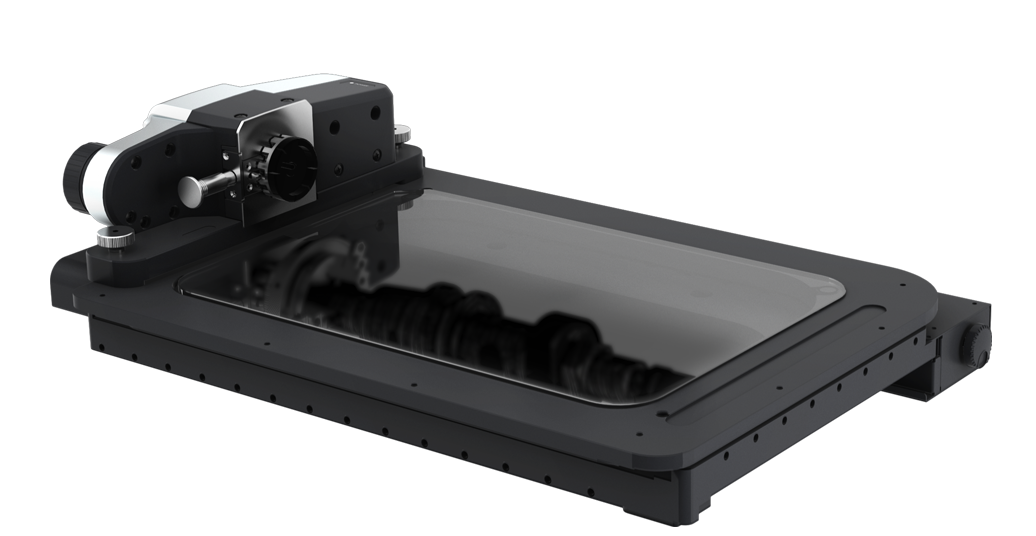

360° Rotary Fixture for Multi-surface Measurement

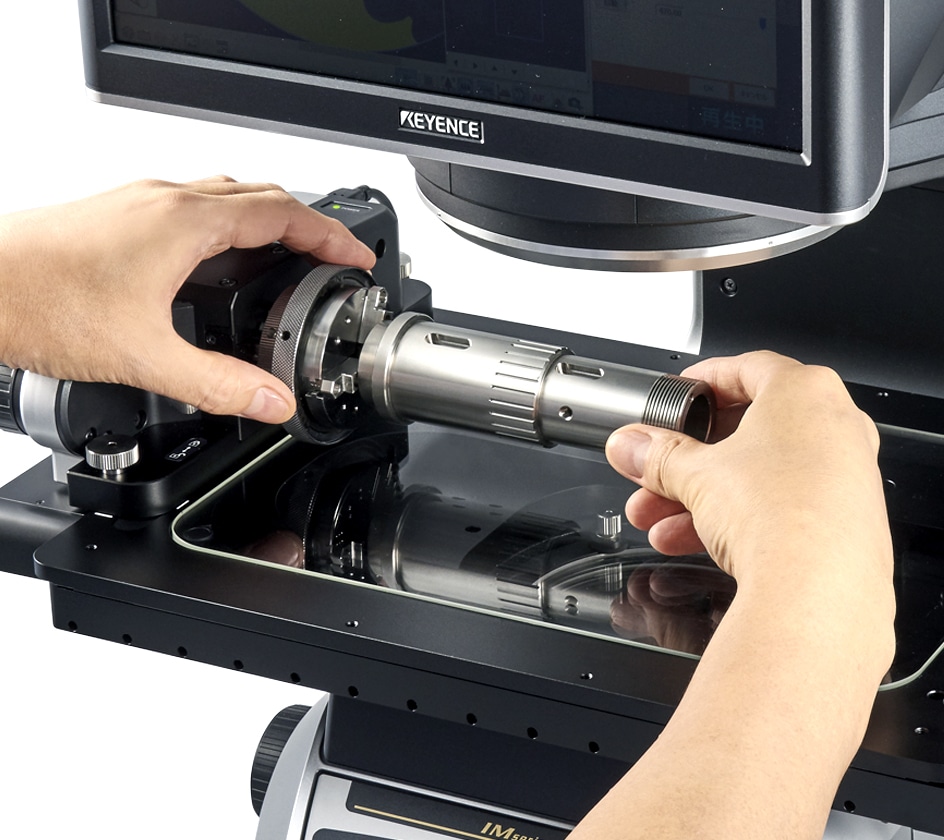

Simply fixture the part in the chuck. The unit automatically measures multiple surfaces while rotating the object; a jig is not required and complex, multi-surface measurements are taken in seconds.

Learn more in the catalogue
