* Download CAD file or product manual for larger image/text and more detail.

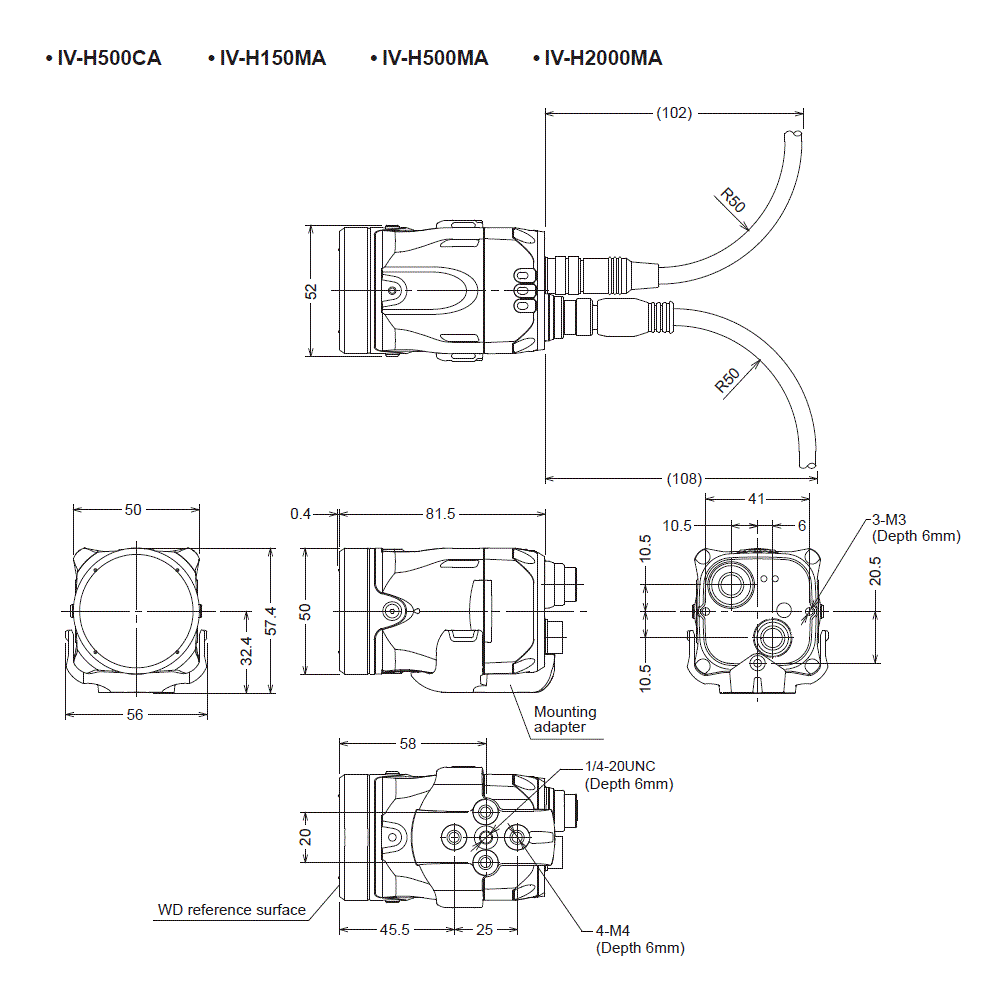

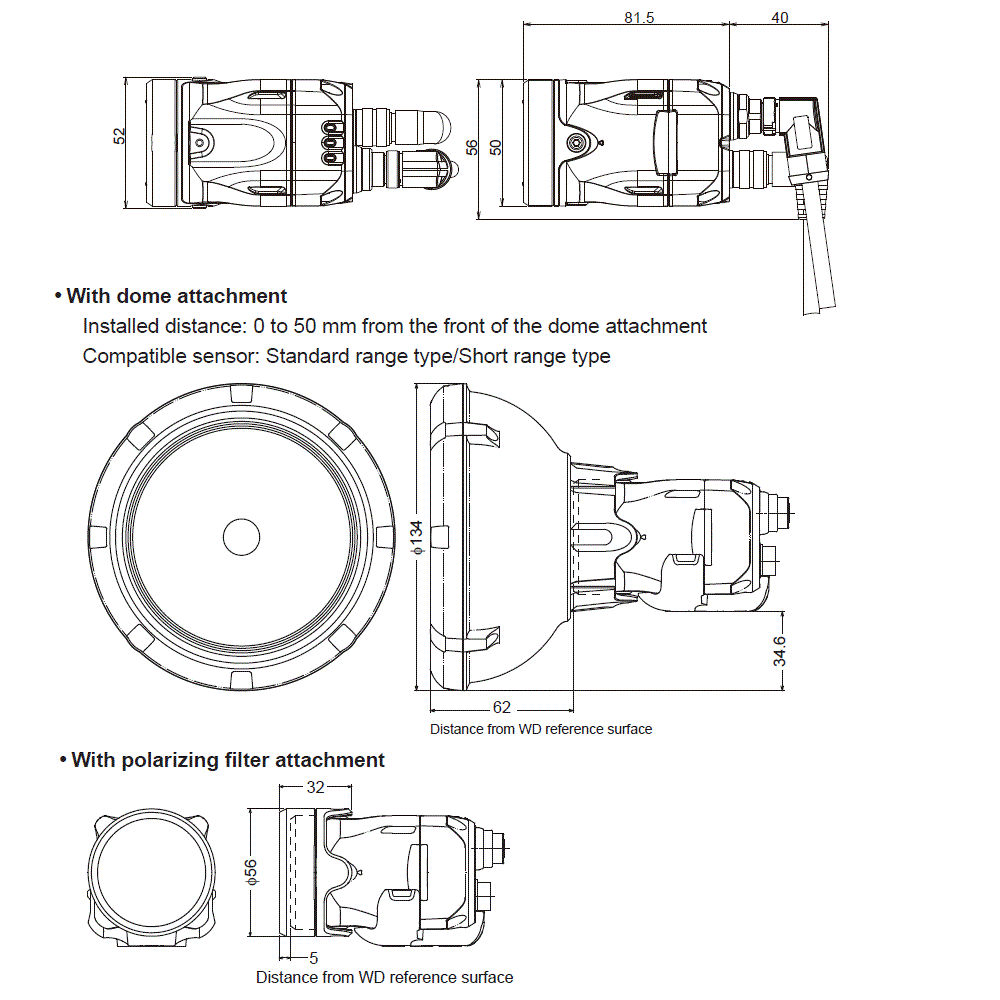

IV-H500CA/H150MA/H500MA Dimension


IV-H500CA/H150MA/H500MA Dimension
