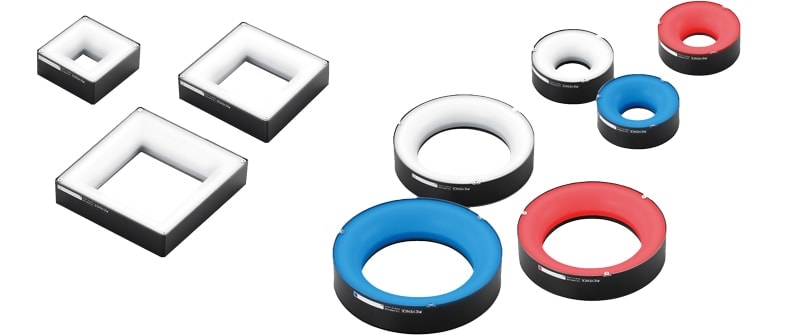

Multi-angle Lights (Ring/Square) Combines the principals of ring, dome and low angle light sources into one
CA-DRxM/CA-DQWxM
Uniform illumination equivalent to dome lighting

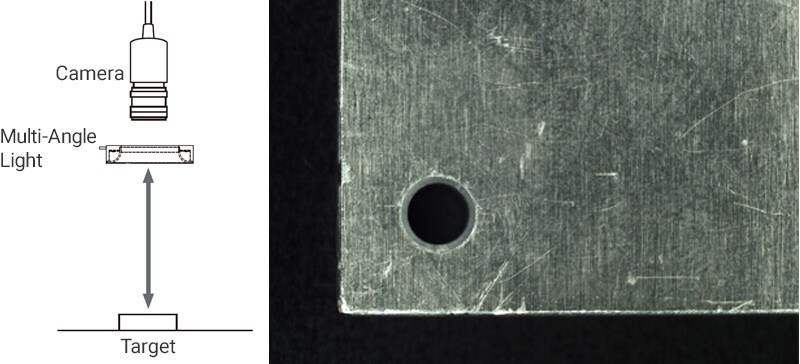

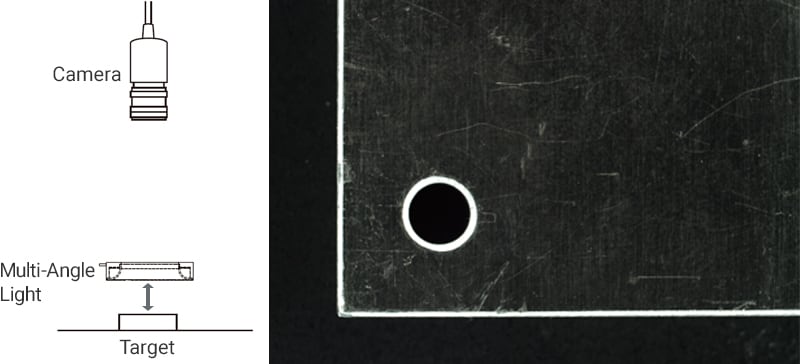

When the LWD is far
LWD: 150 mm
When the light to target distance is far the multi angled, diffused light is applied across the whole of the target. This creates a uniform illumination effect without irregularities similar to using a dome light source.
Edge enhancement illumination equivalent to low angle lighting
When the LWD is close
LWD: 10 mm
When the light to target distance is short the light emitted at a shallow alignment reflects directly back to the camera. This causes the edges of the target to be highlighted, creating an effect similar to using a low angle light source.

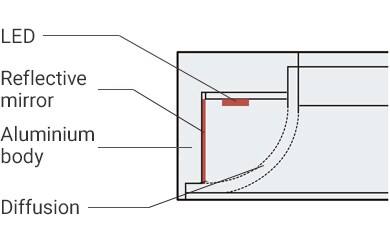

High-intensity mounting of power LEDs
Since LEDs are mounted at high intensity (narrow pitch), uniform high intensity light is generated.

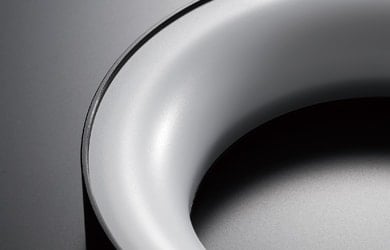

Matte-finished diffusion plate
To obtain maximum diffusion effect, the whole area of the diffusion plate has a matte finish.
Application
Inside of a plastic cap

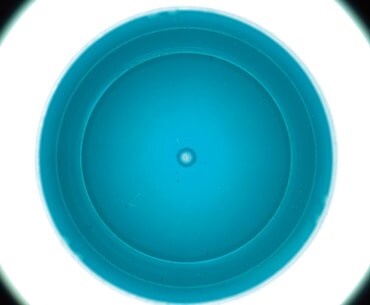

With standard lighting

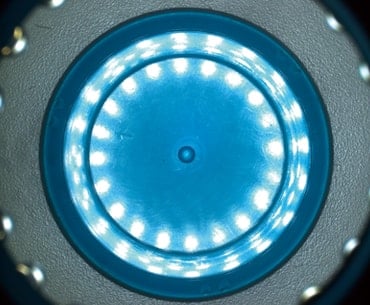

With multi-angle light (Ring)
BGA/solder ball inspection

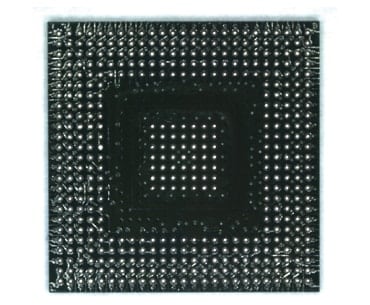

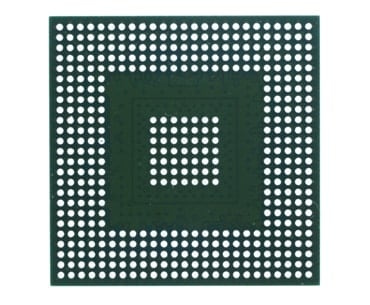

With standard lighting
With multi-angle light (Square)
