Image Dimension Measurement System

IM-8000 series

Catalogues View Catalogue

Image Dimension Measurement System IM-8000 series


Instant Measurement

A new function enables instant measurement just by placing the parts on the stage. This feature greatly reduces production costs when the number of measurements is large.

View Catalogue

IM-8000 series - Image Dimension Measurement System

Capable of high-definition imaging, the IM-8000 Series Image Dimension Measurement System has triple the detection performance of conventional systems without sacrificing its simple operation; just place the part on the stage and press one button. With a 20-megapixel CMOS sensor and a new algorithm for stable edge detection, high-accuracy measurement on up to 300 features within seconds is now possible. A newly developed, optional automated rotary fixture allows for 360' multi-surface measurement on diverse part sizes and shapes. Achieve accurate and repeatable measurements instantly with its 'place and press' operation; this ensures consistent results regardless of operator experience. The fast, accurate, and easy-to-use interface of this product solve various measurement-related problems.


Three Times the Detection Performance of Conventional Models

Equipped with a 20-megapixel CMOS sensor for crisp, clear resolution;
enabling it to capture and accurately measure fine edges that were previously difficult to see.

360° Rotary Fixture for Multi-surface Measurement

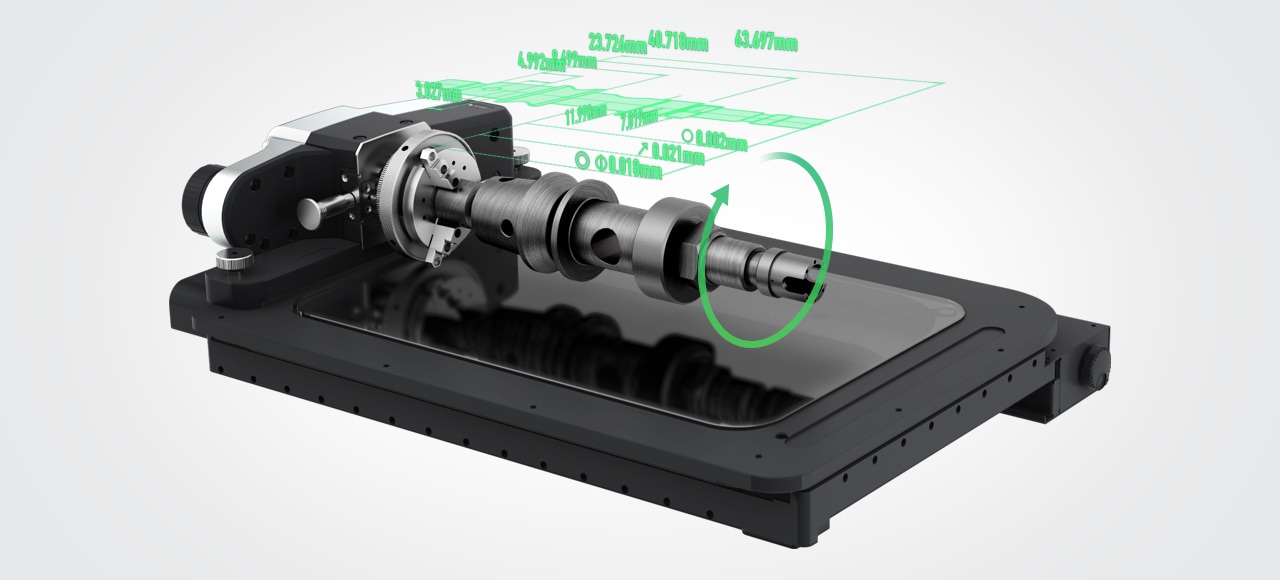

Simply fixture the part in the chuck. The unit automatically measures multiple surfaces while rotating the object; a jig is not required and complex, multi-surface measurements are taken in seconds.

Automatic Measurement on up to 300 Part Features in Seconds

Anyone can measure a part by simply placing it on the stage and pressing one button.
Regardless of operator skill, the unit provides accurate and repeatable measurements instantly.

01 | Place the part on the stage

02 | Press the button

03 | Measure 300 features in seconds
