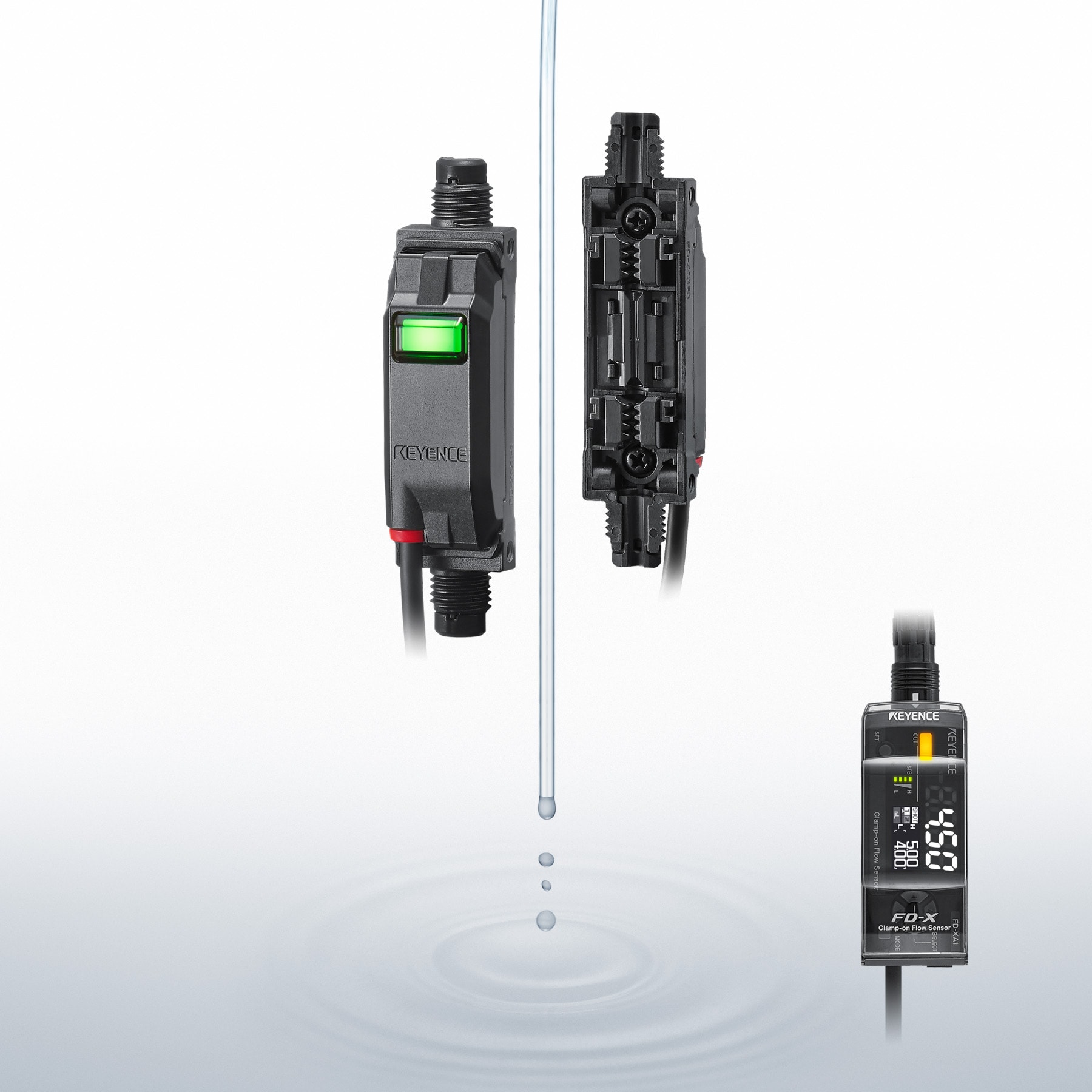

Clamp-on Micro Flow Sensor FD-X series

Low Flow Monitoring from Outside the Pipe

FD-X series - Clamp-on Micro Flow Sensor

The FD-X Series flow sensors monitor low flow of any liquid by clamping directly on pipes or tubes up to 14mm.


  • Spraying / Coating

  • Dispensing

  • Filling / Dosing / Injecting

  • Cooling / Lubricating


Utilize Everywhere

  • Detect flow rates as low as 0.1 mL/min or shot amounts as low as 0.001 mL
  • Any liquid flow rate can be monitored including:
    Viscous greases, chemicals, and sanitary liquids
  • Compatible with metal pipes and resin tubes from 3 mm - 12.7 mm

Zero Impact on Process

  • Simply clamp the flow sensor to any pipe or tube
  • Completely non-invasive
  • No machine downtime or risk of clogging, pressure loss, or contamination

Quick Data Retrieval

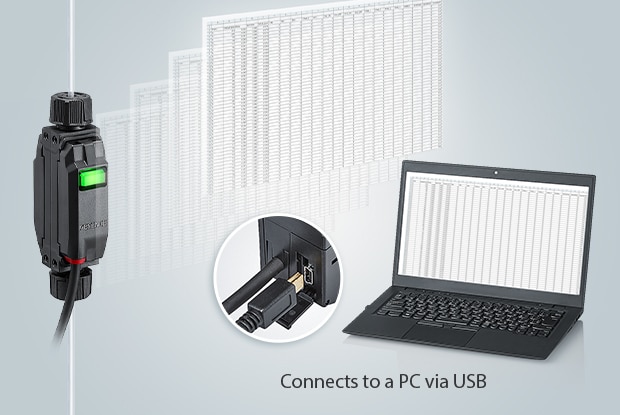

  • Export liquid usage data to PC via USB connection
  • Communicate with the FD-X over various platforms such as Ethernet/IP®, CC-Link, DeviceNet®, etc.
  • IO-Link compatible
