PCB terminal appearance inspection
-
Industry:
- Semiconductors/LCDs, Electronic Devices
-
Products:
- Machine Vision

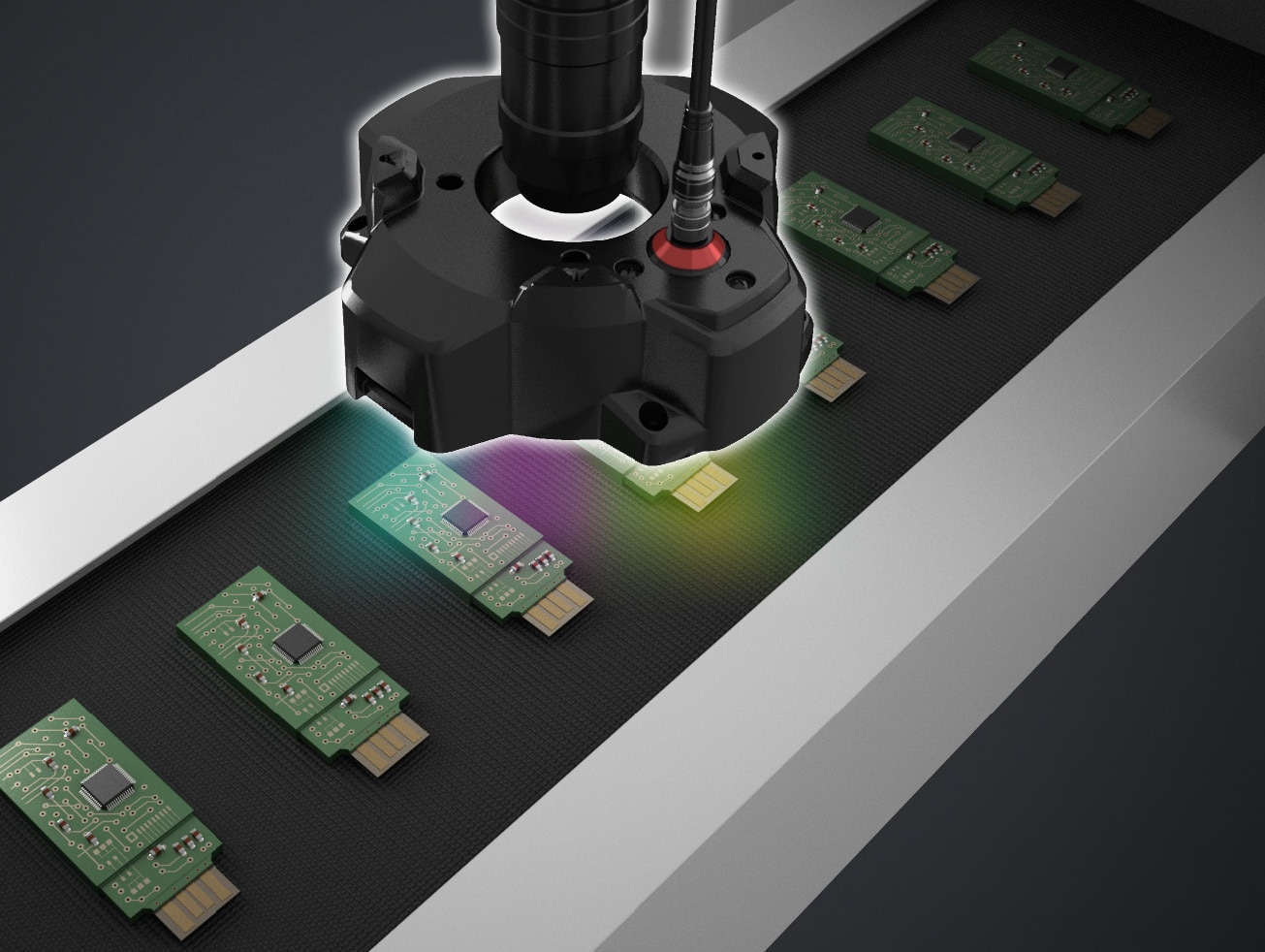

This example shows an appearance inspection of PCB terminals. In some cases, stains are difficult to distinguish from similar colours and gloss from terminals under conventional lighting conditions. KEYENCE’s Multi-Spectrum mode offers reliable inspections by enabling detection of even the slightest stains.
NG result
NG result (after colour extraction)
