High-speed 2D/3D Laser Profiler

LJ-V7000 series

Catalogues View Catalogue

Applications High-speed 2D/3D Laser Profiler LJ-V7000 series

2D Measurement

Height and step difference

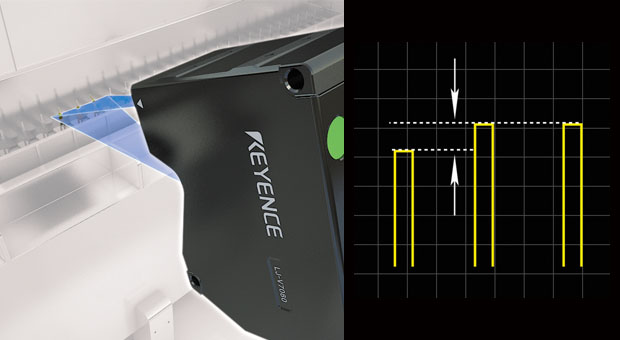

Pin height and step height measurement

Width and position

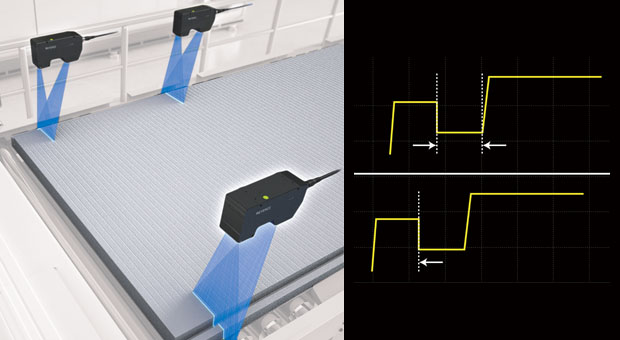

Building material board positioning

Profile and cross section

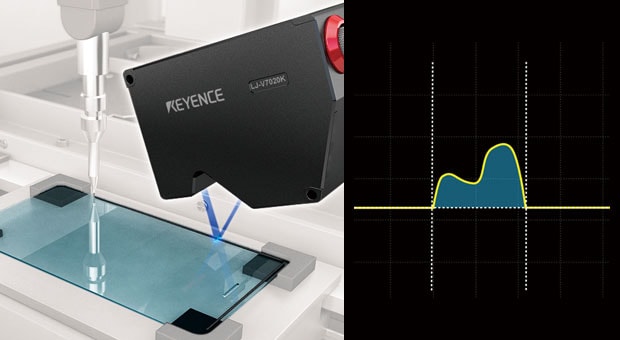

Sealant inspection

Warpage and flatness

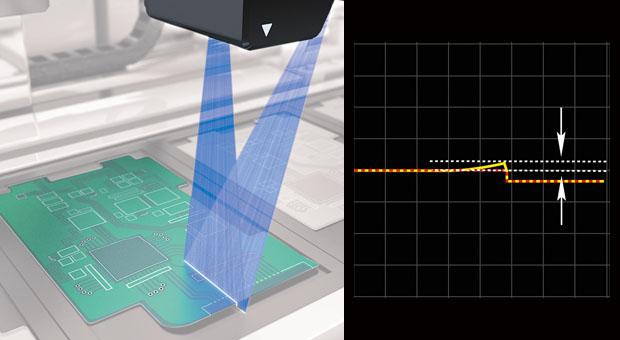

Warpage measurement of PCBs

Angle and radius

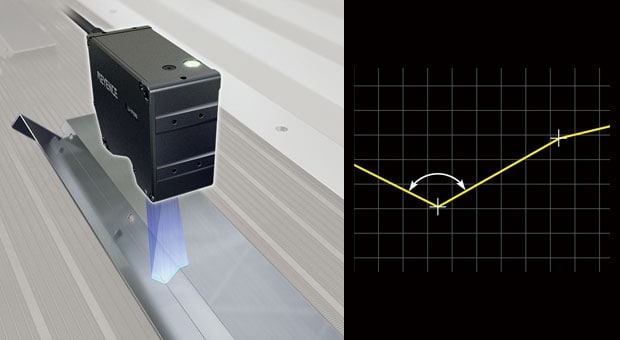

Angle measurement of processed products

Thickness measurement

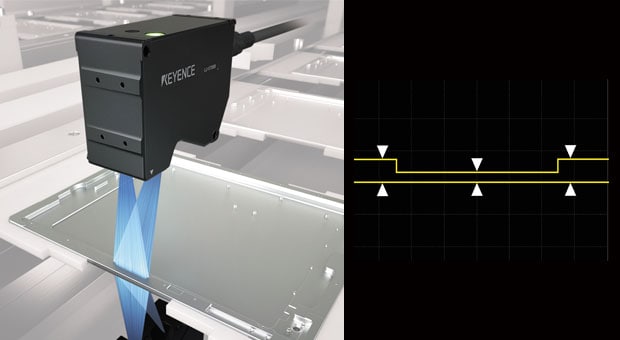

Case thickness measurement

3D Measurement (Image Processing)

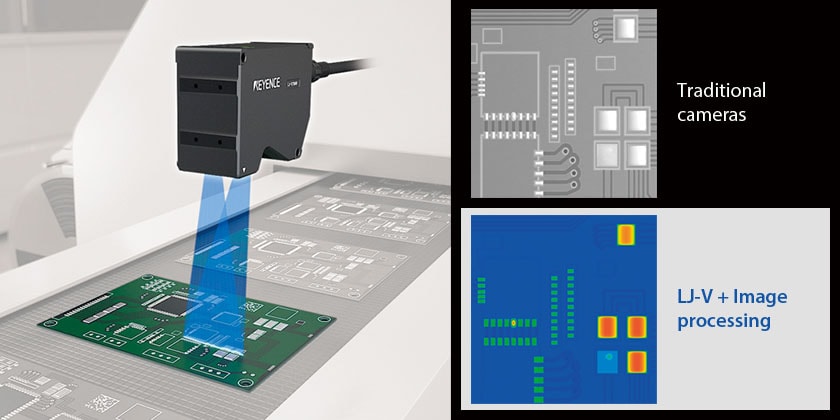

Soldering bridge and volume inspection

  • Traditional cameras
    Inspection is difficult due to influence from PCB patterns and solder surface conditions
  • LJ-V + Image processing
    Inspections including solder presence, bridging, and volume can be performed

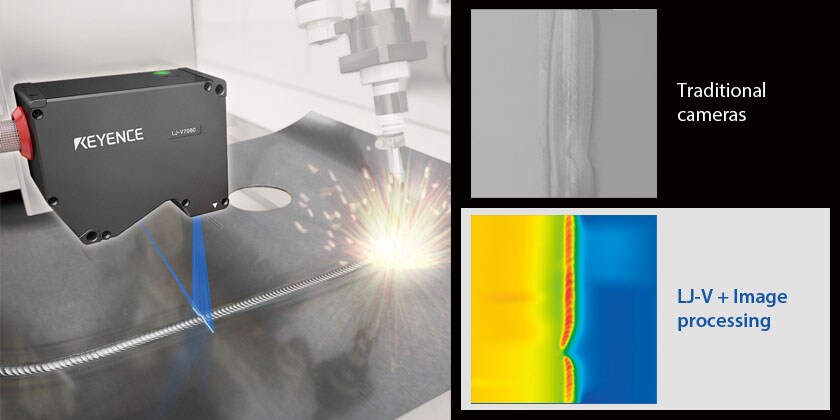

Tailored blank welding appearance inspection

  • Traditional cameras
    Inspection using the camera is difficult because the surface conditions of the workpiece are not stable
  • LJ-V + Image processing
    Stable inspection is possible regardless of the workpiece surface

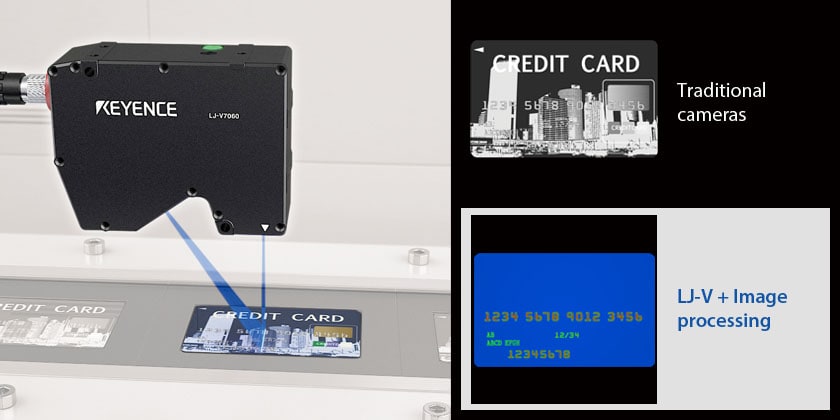

Card number character recognition (OCR)

  • Traditional cameras
    Detection is difficult due to influence from the background
  • LJ-V + Image processing
    Reliable character recognition (OCR) is possible no matter what kind of card is being used
